ALLEN-BRADLEY ยท COMPACTLOGIX ยท CONTROLLOGIX

PLC Recipe Backup & Comparison Software

Back up, compare and validate recipe parameters directly from Allen-Bradley CompactLogix and ControlLogix PLCs. Identify mismatches against approved backups and generate traceable reports without modifying PLC values.

Read-only PLC workflow No PLC program changes Designed for industrial use

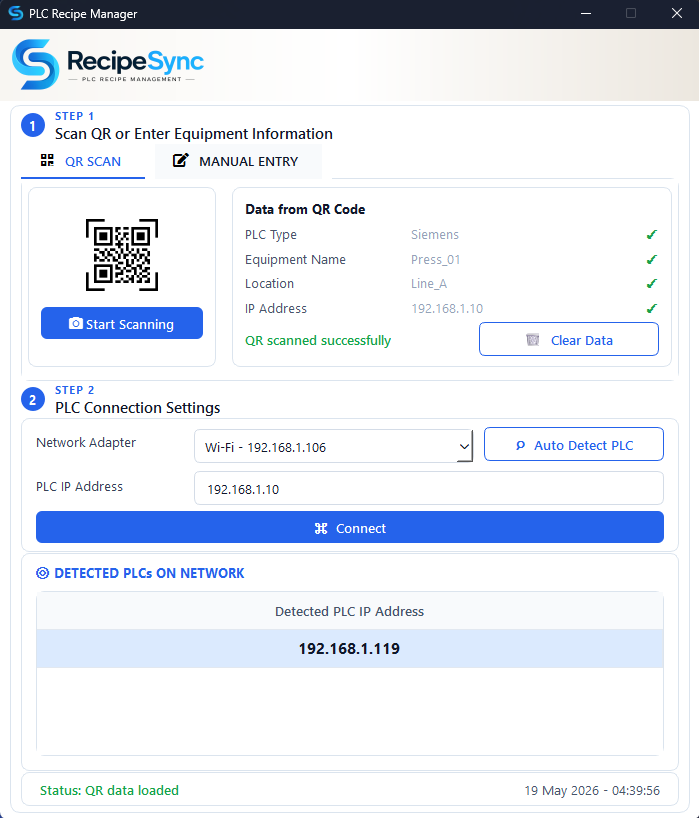

RecipeSync Allen-Bradley PLC recipe backup and comparison software interface
Core capabilities

Built Around the Recipe Audit Workflow

A focused tool for controls, maintenance and quality teams that need to capture recipe values, preserve approved backups and quickly identify differences.

๐Ÿ”Ž

PLC Discovery

Connect to a known controller IP or identify reachable PLCs from the selected network interface.

๐Ÿงฉ

Recipe Tag Selection

Work with the recipe arrays and tag structures used by the selected Allen-Bradley application.

๐Ÿ’พ

Recipe Backup

Read recipe parameters from the PLC and preserve them as a structured reference backup.

โ†”๏ธ

Recipe Comparison

Compare live PLC values against a selected backup and highlight parameter-level mismatches.

๐Ÿ“ท

QR Machine Identification

Use machine QR data to simplify equipment identification and connection information.

๐Ÿ“Š

Excel Export

Export recipe information for engineering review, records, traceability and further analysis.

๐Ÿ“„

PDF Reports

Generate clear comparison documentation with machine, recipe and validation information.

๐Ÿ›ก๏ธ

Read-Only Validation

RecipeSync is designed to read and compare recipe data without writing values back to the PLC.

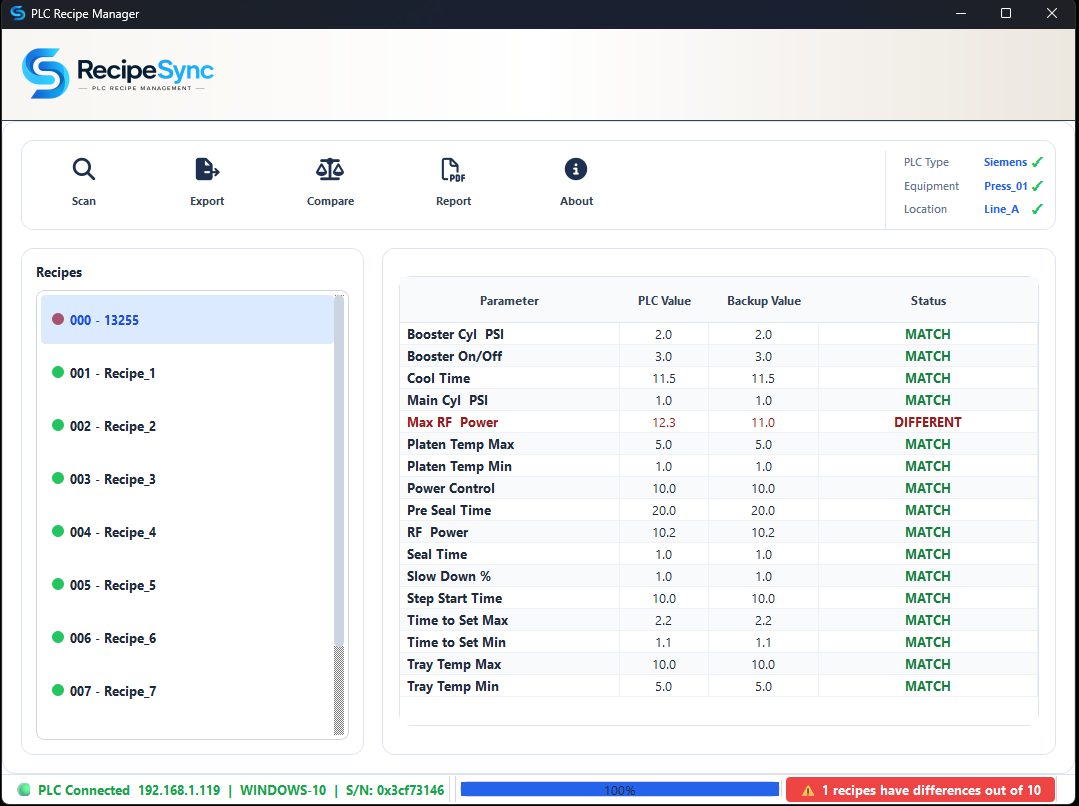

RecipeSync PLC recipe comparison interface showing parameter mismatches
Live vs. approved backup

Find Recipe Mismatches Without Reviewing Every Parameter

RecipeSync presents live PLC recipe values next to the selected reference backup so differences can be reviewed quickly and consistently.

โœ“ Highlight parameter differences
โœ“ Read live PLC recipe values
โœ“ Match / Different status
โœ“ Validate multiple recipes
โœ“ Preserve traceable comparison results
Guided workflow

From PLC Connection to Audit Report

A simple workflow designed for technicians and engineers working directly with production equipment.

1

Identify Machine

Scan the equipment QR code or enter the machine information manually.

2

Connect to PLC

Select the network interface and connect to the target Allen-Bradley controller.

3

Select Recipe Data

Use the recipe structure configured for the machine and application.

4

Back Up / Compare

Capture recipe values or compare live values against an approved backup.

5

Document Results

Export the recipe information or generate a comparison report.

Documentation

Clear Reports for Engineering and Audit Traceability

Turn a PLC recipe comparison into a record that can be reviewed by controls, maintenance, quality or manufacturing teams.

โœ“ PDF comparison reports
โœ“ Excel recipe export
โœ“ Machine and PLC identification
โœ“ Timestamped validation records
โœ“ Recipe-level comparison details

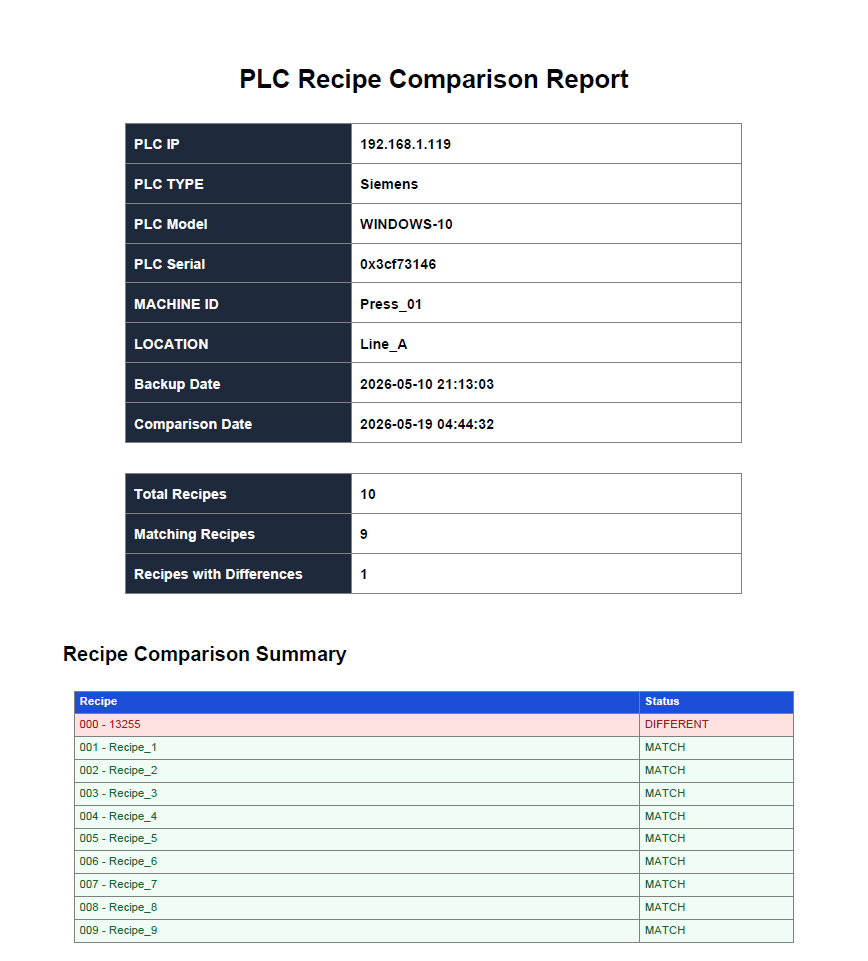

RecipeSync PLC recipe comparison and audit report
Purpose-built

Recipe Backup, Not PLC Program Version Control

RecipeSync focuses on recipe values and process parameters stored in the PLC. It complements PLC program backup and version-control systems rather than replacing them.

RecipeSync

Use it when you need to know whether the recipe parameters currently in a machine match an approved recipe backup.

  • Recipe values and arrays
  • Parameter-level comparison
  • Approved recipe backups
  • Mismatch identification
  • Recipe audit reports

PLC Program Backup Tools

Typically used to preserve and version the controller application or project itself.

  • PLC project files
  • Program version history
  • Change management
  • Controller project recovery
  • Plant-wide asset management
Controller platform

Focused on Allen-Bradley Logix Controllers

This RecipeSync edition is intended for CompactLogix and ControlLogix applications. Final compatibility is confirmed against the controller, firmware and recipe-tag architecture used by the machine.

RecipeSync Allen-Bradley PLC compatibility
Deployment option

Portable Industrial Recipe Audit Tool

RecipeSync can also be packaged as a dedicated portable device for controlled recipe backup and comparison work, reducing dependence on a permanent engineering workstation for routine recipe audits.

Connectivity

Ethernet + Wi-Fi

Workflow

Local PLC Access

Application

Recipe Audit

Usage

Portable Tool

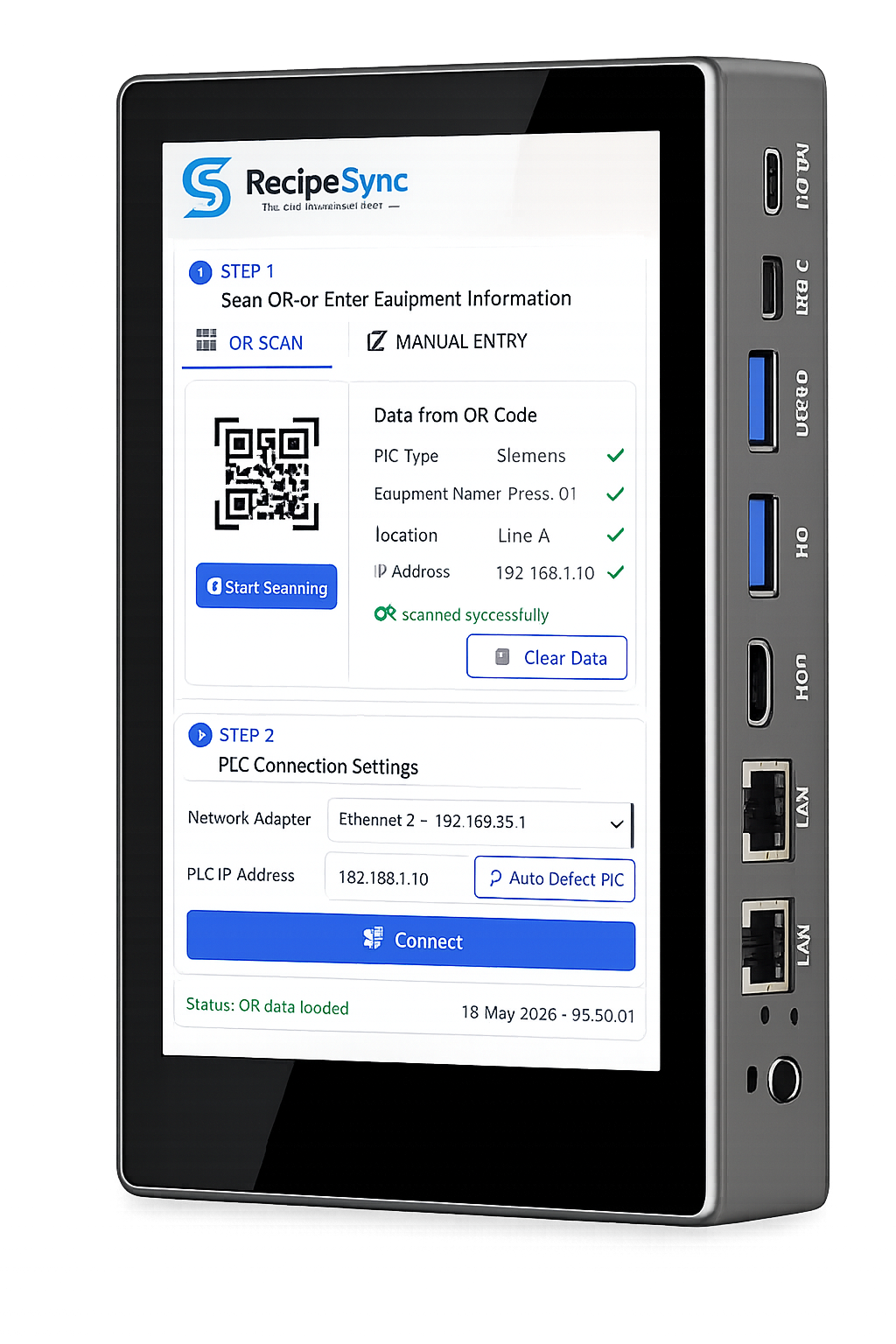

RecipeSync portable industrial recipe backup device
RecipeSync portable and mobile workflow
See the workflow

RecipeSync Video Demo

See how RecipeSync supports machine identification, PLC access, recipe backup and comparison.

7-DAY TECHNICAL EVALUATION

Evaluate RecipeSync With Your PLC Application

Have a CompactLogix or ControlLogix application with recipe arrays? We can review your controller and recipe structure and determine the scope for a 7-day RecipeSync evaluation adapted to your application.

Request 7-Day Evaluation

Compatibility and evaluation scope are confirmed during the technical review.
